Lifting Type Magnetic Tape AGV Auto Guided Vehicle With 360 Degree Rotation Function

Name: Lifting Type Magnetic Tape AGV Auto Guided Vehicle With 360 Degree Rotation Function
Brand: CASUN
Price: 1 USD

China Lifting Type Magnetic Tape AGV Auto Guided Vehicle With 360 Degree Rotation Function wholesale

Brand Name : CASUN

Model Number : BFJ1500V2

Place of Origin : China, Shenzhen

MOQ : 1 unit

Price : USD

Supply Ability : 200 units / month

Delivery Time : 35 days

Packaging Details : Wooden case

Model : BFJ1500V2

Dimensions : L1500*W800*H765(mm)

Load capacity : 1200kg

Travel speed : 0-45m/min(Or customizing))

Travel Direction : 360°Omni-directional driving

Power : DC24V

Contact Now

Omni Directional Magnetic Tape AGV Tunnel Type with Lifting Platform AGV

1. Product Description:

Omni-directional lifting Platform AGV: The material can be lifted to the set height and transported to the support plate, and the space required for running is small. In a narrow space environment, the normal AGV can not complete the docking work, and its 360-degree rotation function can meet the requirements of setting different angles running on site, and effectively utilize the on-site space. Mainly suitable for environment with small space and heavy lifting required.

2. Application:

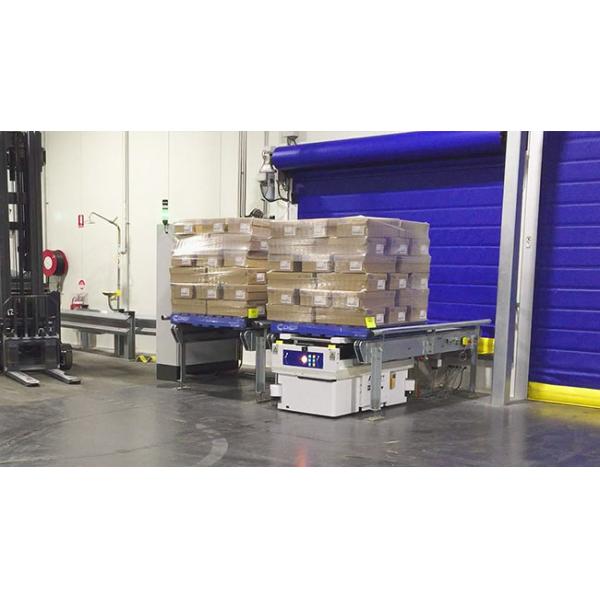

This AGV is customized project for a cold supply chain logistic transportation. Widely used in intralogistics system.

3. Specifications:

Product name	Omni Direction Tunnel Type with Lifting Platform AGV
Model	BFJ1500V2
Dimensions	L1500W800H765(mm)
Load capacity	1200kg
Minimum turning radius	0, Omni-directional driving
Guidance	Magnetic guidance
Travel Direction	360°Omni-directional driving
Travel speed	0-45m/min(Or customizing))
Guiding accuracy	±10mm
Stopping accurac	±10mm
Communication available	RF / Wifi
Driving mode	Differential driving
Power	DC24V
Workable	24 hours by optimizing automatic charging
Ramp	≤2°
Type	Lifting platform
Charging method	Manual charging / automatic charging
Battery	Lead acid battery / lithium battery
Life time	≥10 years
Alarm	Sound and visual
Safety features	Front obstacle sensor+mechanical bumper sensor
Safety induction range	Detecting range ≤3m, adjustable; Emergency braking distance: ＜20mm

4. Advantages:

Omni directional lifting
Automatic scanning barcode when AGV rotate 360 degree
Able to work in a narrow space
